Product Features
Diamond grinding wheel: durable; single wheel with a width of 35mm, featuring a rough grinding of 16mm on the right (180#), a fine grinding of 19mm on the left (240#), and an edge truing groove.

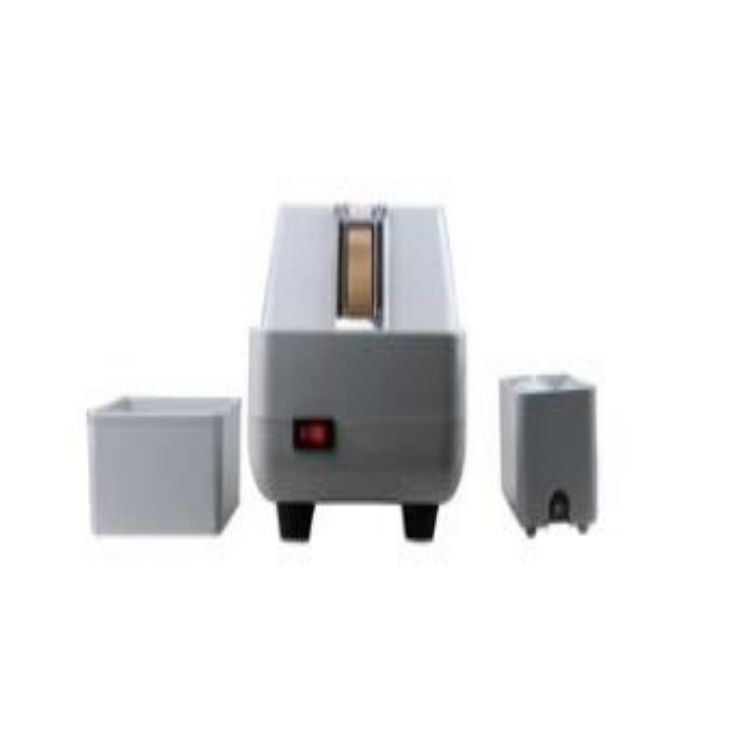

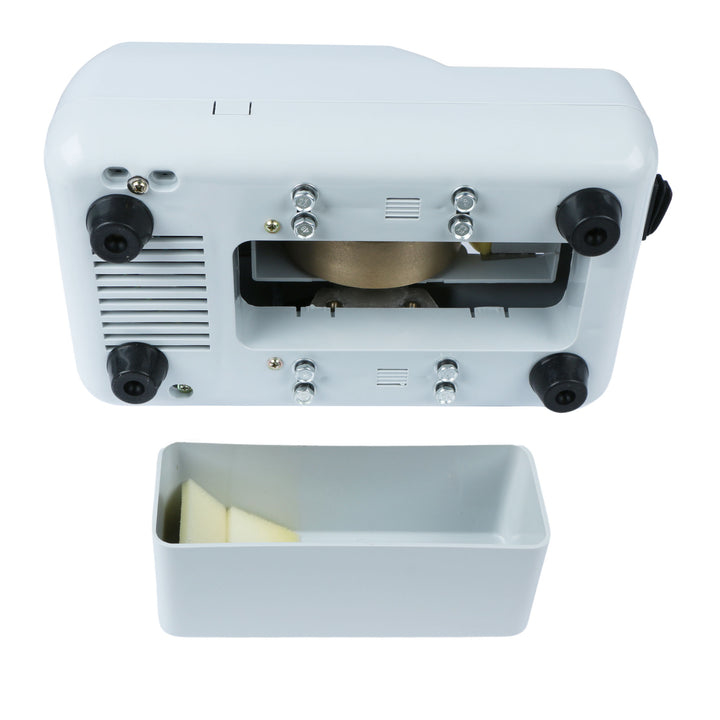

Water can: equipped with upper and lower water cans, both of which are removable and convenient for water replacement. The upper water can has a pure copper water valve for adjusting the water output, while the lower water can is connected to a drainage pipe for discharging wastewater.
Double bracket and water-blocking plate: the double bracket offers high stability, while the water-blocking plate reduces water splashing.
Grindable materials: resin, glass, PC, stone, and more.

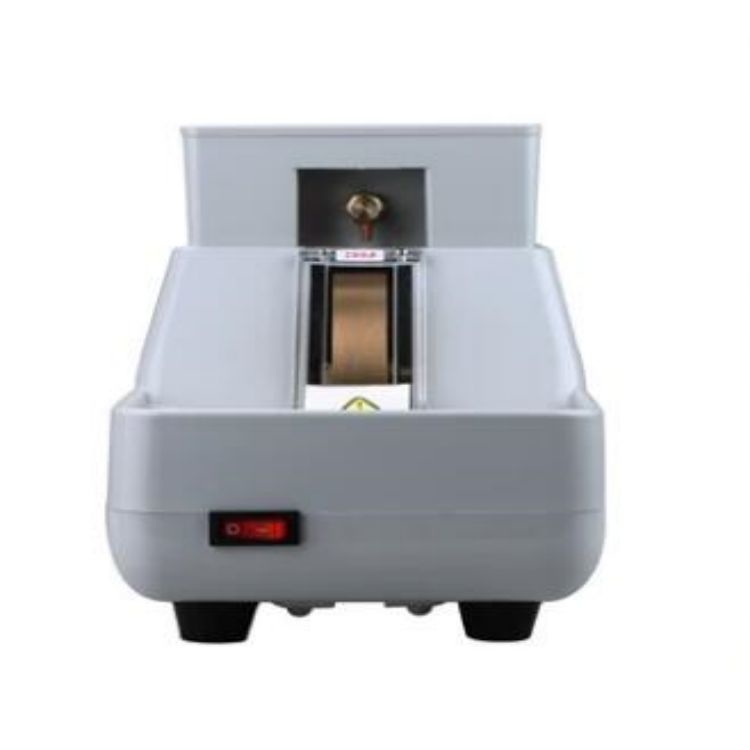

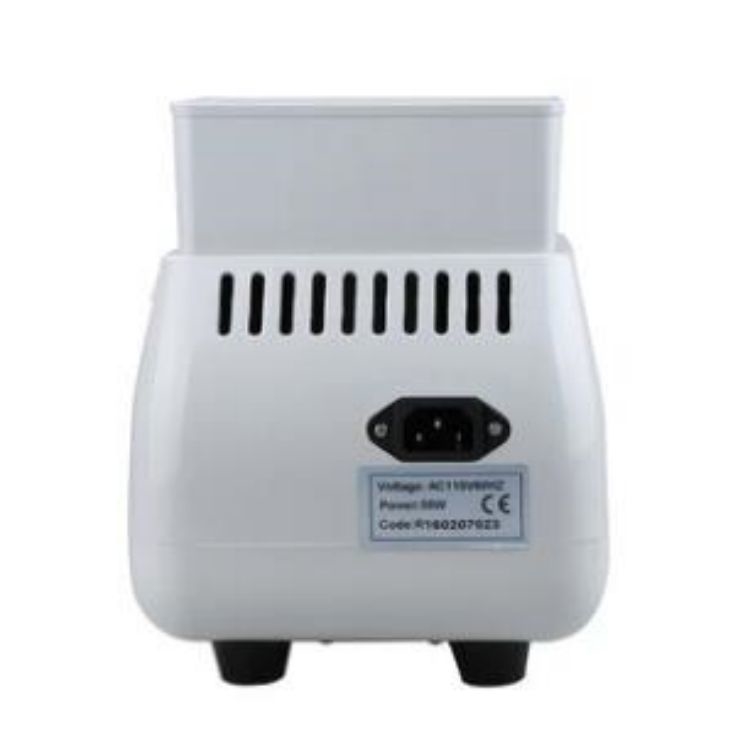

Manual Lens Grinder with 35WV Single Wheel and DC Motor

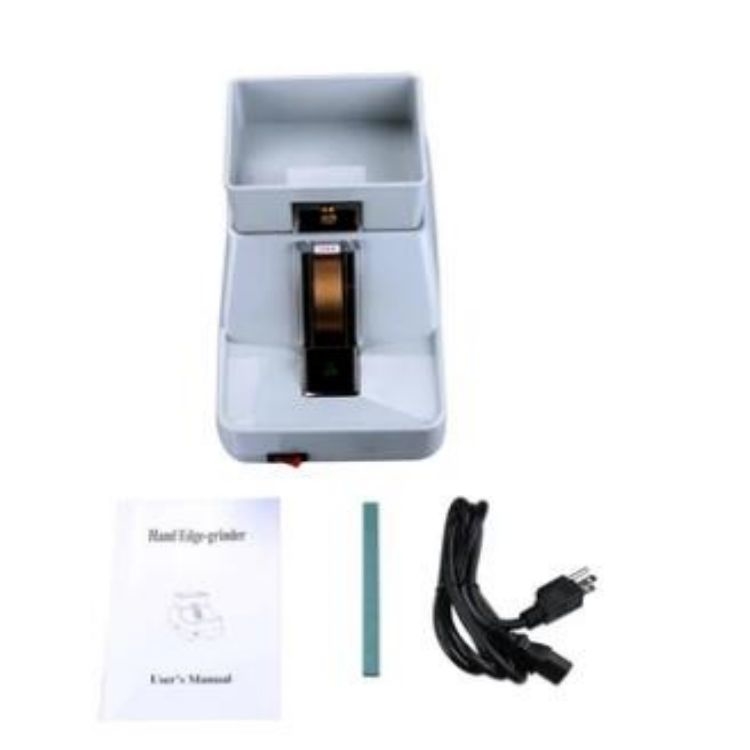

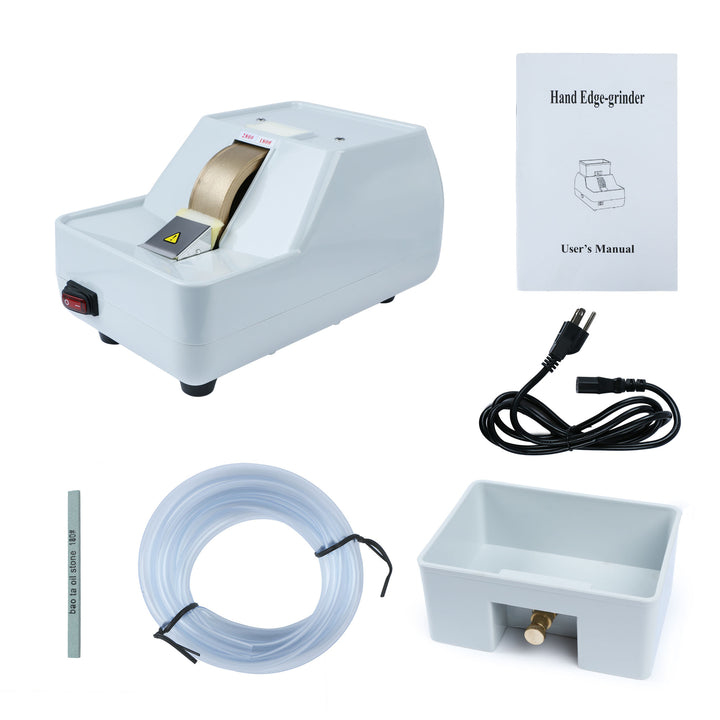

Packing list
Manual lens edger X 1
Drain pipe X 1
Power cord X 1
Upper water can X 1
Oilstone stick X 1
User's manual X 1
Specification
Wheel material: adamas
Wheel Size: 14*100*35mm
Wheel parameter: 35WV, width 35mm, right rough grinding 16 mm, left fine grinding 19 mm, with edge truing groove
Wheel speed: 5500-6000 r/min
Available Material: PC, CR, glass, stone, cutters
Power Supply: AC 110 V/ 60 Hz; 55 W
Dimension: 285 x 170 x 225 mm
Weight: 5 kg
Processing time
According your order list. we will supply delivery time .
Commonly is 5-7 work days after we confirm payment
Shipping time
By Express : 3-7 days . Door to door service
By Air : 3-7 days . (the goods arrival at your local air ports
By sea : 30-40 days (the goods arrival at your local sea ports )
PS : by air or by sea, if you need door to door service, please tell us . we will help you checking the extra door to door cost.
How many months warranty do you provide ?
one year
What should I do if the machine have question ?
For ensuring all the items are in good quality, we will test all products before the packages were sent out. Once the machine have some question, please don't worry. kindly send us some images of the situation , Video and machine series, and explain the question in where . we will supply solution to you deal soon.
What should I do if the spare parts is broken in Warranty ?
If in Warranty, some spare parts broken in the Use. kindly supply picture or video , and machine series number .
We will send the spare parts by express to you soon.. and we bear express cost .
