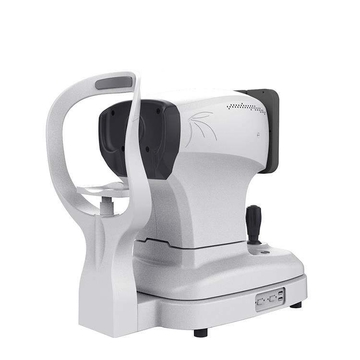

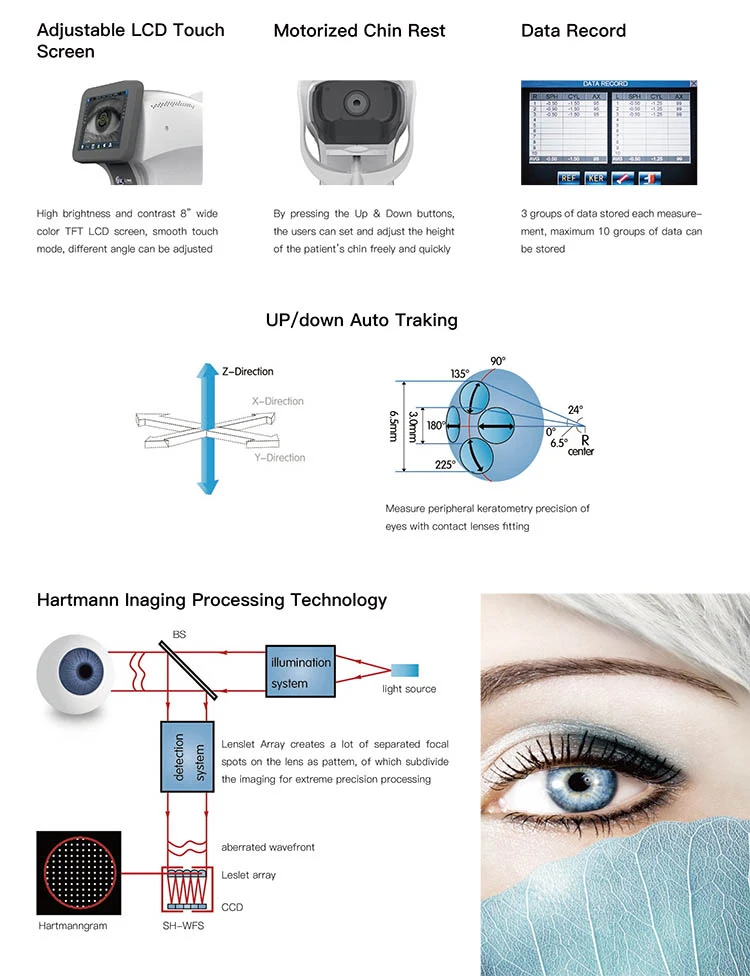

The Auto Refracto-Keratometer is one high precision instrument of objective measuring the patient’s eyes with unique optical system inside and accurate imaging analyzing and processing in Hartman technology. It’s mainly used to measure the patient’s diopter, including sphere power, cylinder power, optical axis, pupil distance and corneal curvature, to provide reference datas for eyes’ treating and eyeglasses choice. The measurement result can be displayed on screen or printed out on paper, and can also be transferred to auto phoroptor (fit to RS232 interface)). If the auto phoroptor can output data, this Auto Refracto-Keratometer can directly print out the measured optometry data by auto photoptor
Range of measurement
Sphere -20~+20D(VD=12) 0.12D/25D step
Cylinder -10~+10D 0.12D/25D step
Axis 0°~180° (1°step) PD 10-85mm,1mm step
VD 0mm,12mm,13.75mm
Min Pupil Size 2.0mm
Keratometry
Corneal apex distance 0.0, 12.0, 13.75, 15.0
Spherical mirror degree -20.00D ~ + 20.00D (VD = 12mm, 0.01,
0.06, 0.12, 0.25 units)
Axis position 10 ~ 180 ° (1 ° unit)
Cornea diopter 33.00D ~ 67.0D (when the corneal equivalent
diopter is 1.3375)
Cornea curvature radius 5.0 ~ 10.0mm (0.01mm accuracy)
Measure light energy <30uw (ensure measurement safety)
Others

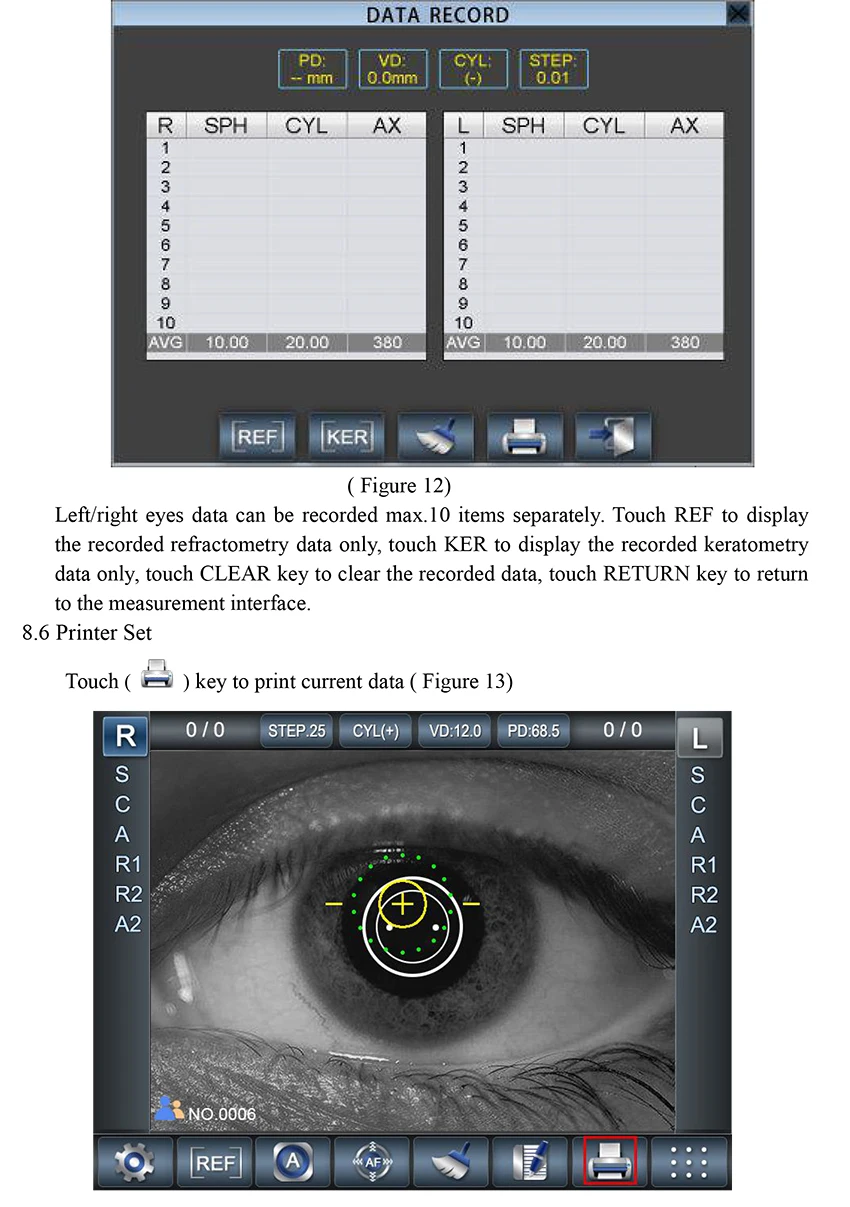

Stored data 10 measurements each

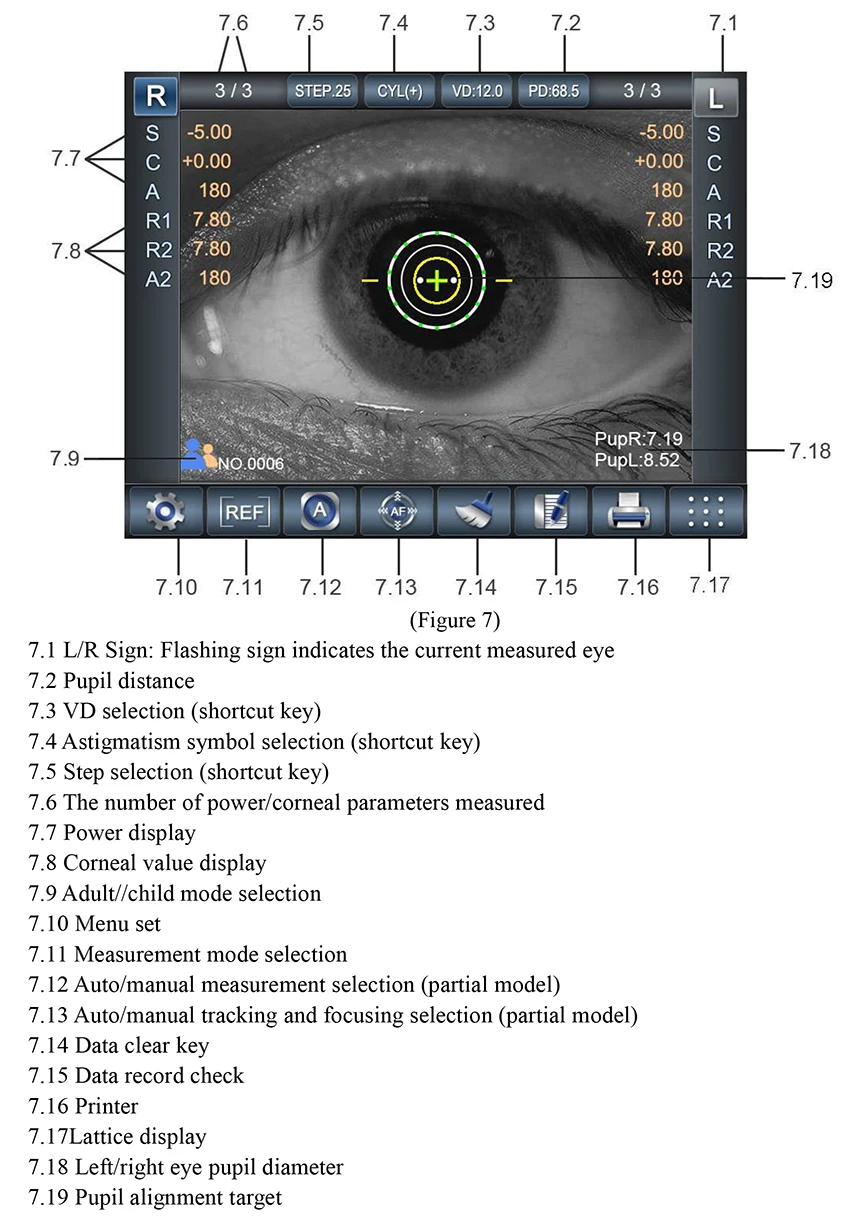

Display 8-inch TFT touch screen (adjustable viewing angle)
Print 57mm thermal printer
Power supply AC 100 ~ 250V, 50 / 60Hz, wide power supply
Dimension 680mm x (width) 400mm x (height) 640mm
Gross weight ~26KG
Processing time
According your order list. we will supply delivery time .
Commonly is 5-7 work days after we confirm payment
Shipping time
By Express : 3-7 days . Door to door service
By Air : 3-7 days . (the goods arrival at your local air ports
By sea : 30-40 days (the goods arrival at your local sea ports )
PS : by air or by sea, if you need door to door service, please tell us . we will help you checking the extra door to door cost.
How many months warranty do you provide ?
one year
What should I do if the machine have question ?
For ensuring all the items are in good quality, we will test all products before the packages were sent out. Once the machine have some question, please don't worry. kindly send us some images of the situation , Video and machine series, and explain the question in where . we will supply solution to you deal soon.
What should I do if the spare parts is broken in Warranty ?
If in Warranty, some spare parts broken in the Use. kindly supply picture or video , and machine series number .
We will send the spare parts by express to you soon.. and we bear express cost .
Please enter your target price
Please provide a quantity
United States
Please provide your name
Please enter your email adress
Enter a valid email address
Please enter the phone number
Please enter the inquiry information
RK-800 Optometry Measure Device Auto Refractometer Optical Autorefractor with Keratometer
Optical Instrument Top Quality Autorefractor Keratometer ARK-980 With Autorefractor Portatil
Auto Refractometer ARK-8500 Autorefractometer Keratometer Optical Instrument
Ophthalmic Equipment Portable Auto Refractometer Keratometer Autorefractor Keratometer
Ophthalmic Equipment Portable Auto Refractometer Keratometer Autorefractor Keratometer
Rightway Brand Retinoscopy Simulation
china ophthalmic high quality ARK-800 auto refractometer
Digital Korea Auto Refractometer Ark 700 With Keratometer
China New Optical bigger LCD touch screen auto refractometer ARK-710 auto refractor with keratometer
Light Led touch screen Auto ref-keratometer
Rightway Brand 2023 New Product 9 Inch Auto Refractometer RK-800 Auto Refractometer With Keratometer
Ophthalmic low price Auto Refractometer ARK900
LINK-PP LPJ1075-1BHNL 100% Cross RTA-110AHQ1A UDE
United States
Carrier
CostDelivery TimeTracking
EMS
$ 804.33 0-27 daysAvailable
Fedex IP
$ 951.89 3-27 daysAvailable
DHL
$ 1,151.71 0-27 daysAvailable

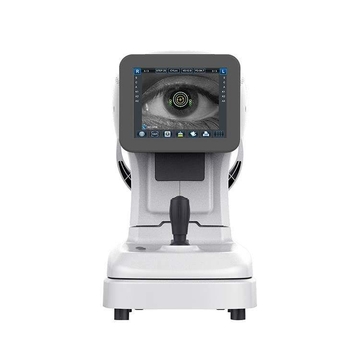

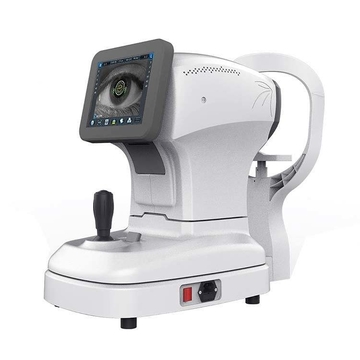

Medical Laboratory Ophthalmology Equipment Auto Refractometer Price
