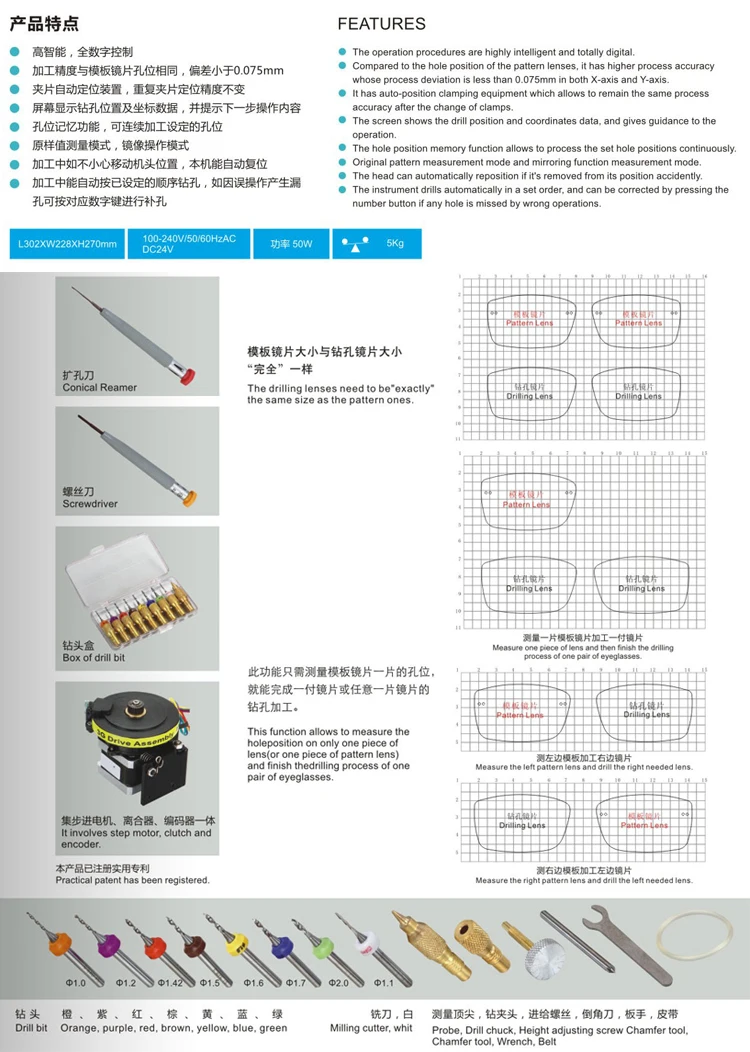

* Feature

* The operation procedures are highly intelligent and totally digital.

* Compared to the hole position of the pattern lenses,it has higher process accuracy whose process deviation is less than 0.075mm in both X-axis and Y-axis.

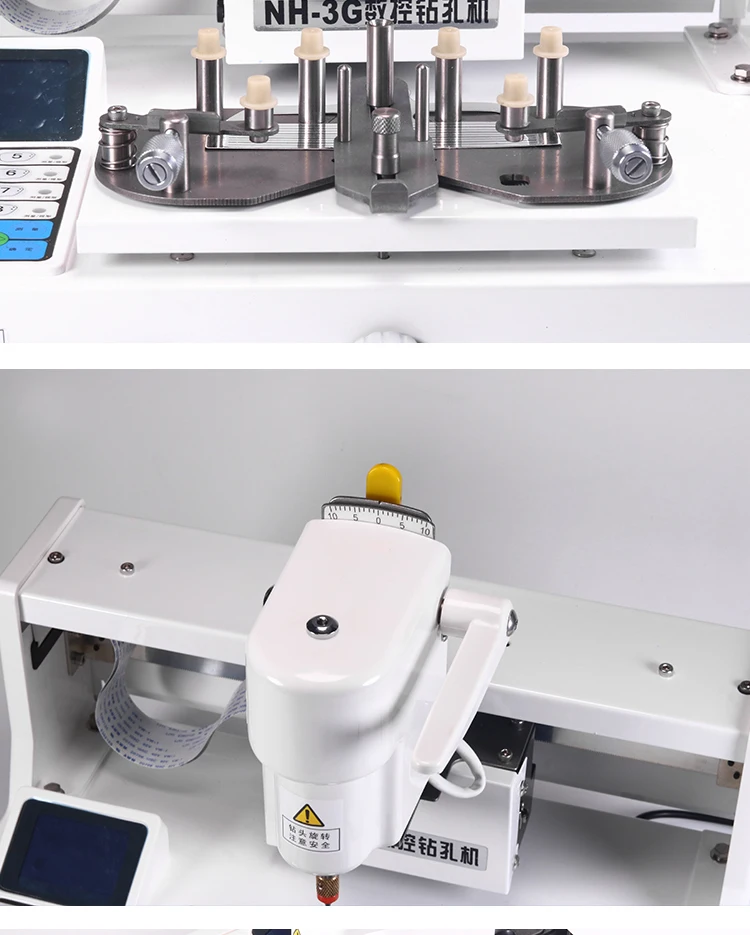

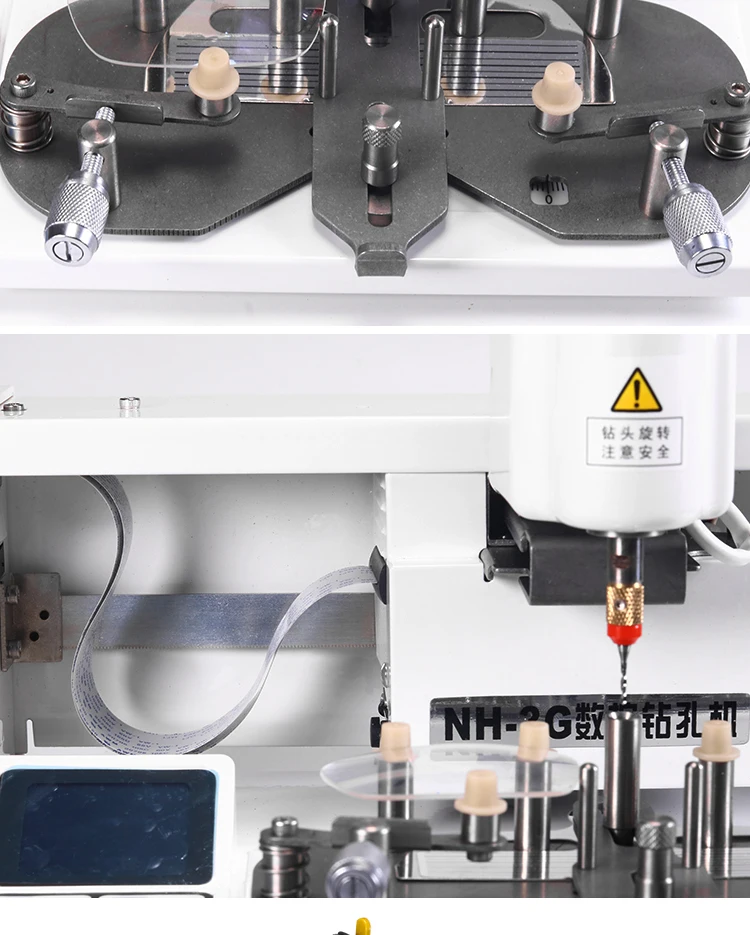

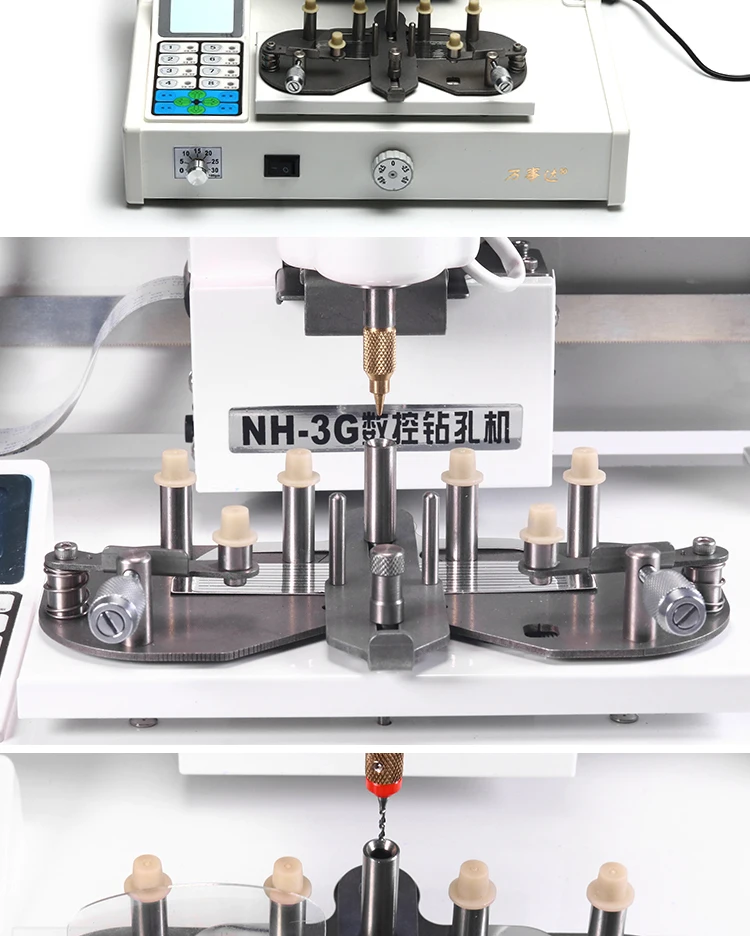

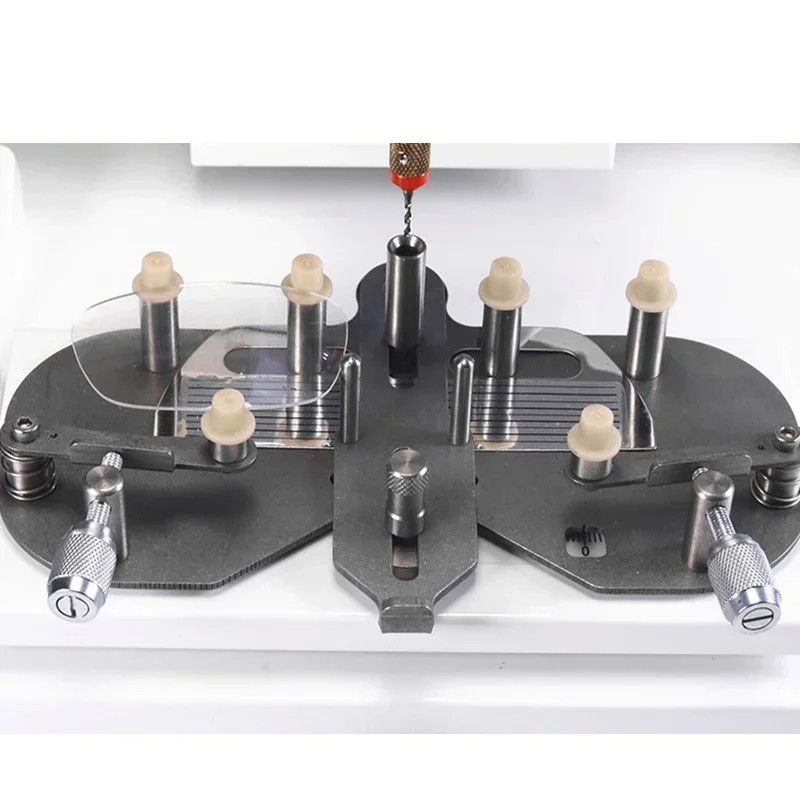

* It has auto position clamping equipment which allows to remain the same process accuracy after the change of clamps.

* The screen shows the drill position and coordinates data,and gives guidance to the operation.

* The hole position memory function allows to process the set hole positions continuously.

* There're two measure modes to choose which are original pattern measure mode and frame position measure mode.

* It has mirroring mode in the process.

* The head can automatically reposition if it's removed from its position accidently.

* The instrument drills automatically in a set order,and can be corrected by pressing the number button if any hole is missed by wrong operations.

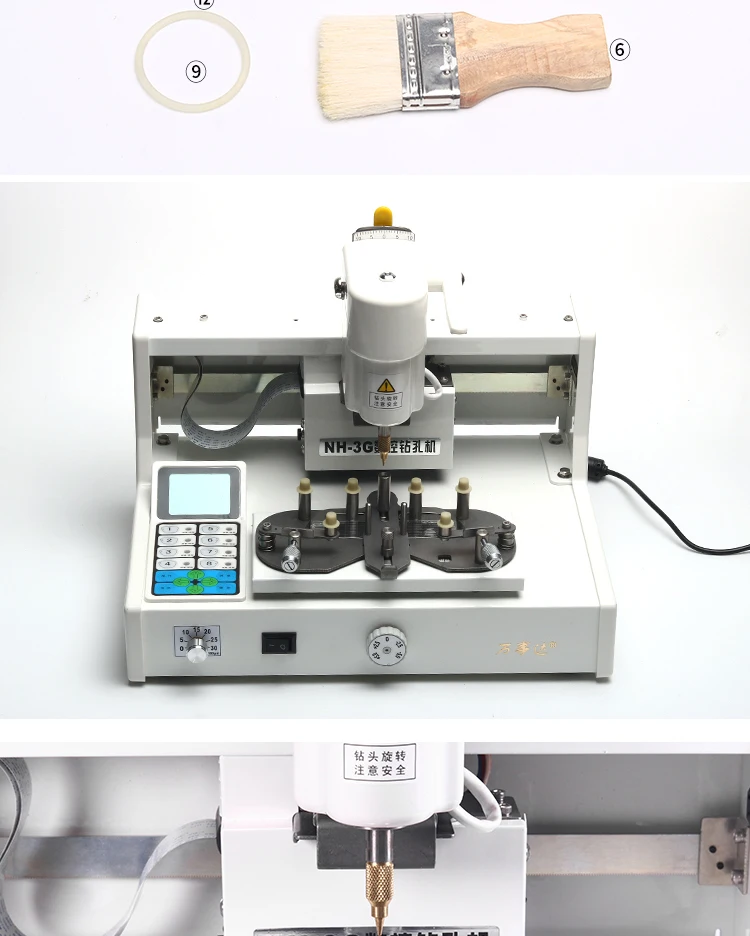

1. Conical Reamer

2. Screwdriver

3. Box of drill bit (orange 1.0, purple 1.2, red 1.42, brown 1.50, yellow 1.60, blue 1.70, green 2.0, white 1.1, Wrench, Belt ...... )

4. It involves step motor, clutch and encoder.

* Parameter

Voltage:220V/50Hz  or  110V/60Hz   DC 24V

Power:50W

Drilling speed: 0~ 5000RPM

Drilling bits' eccentricity tolerance: 0.03mm

X-axis moving range (Max.): 155mm

X-axis moving rated load: 50kgs

Y-axis moving range (Max.): 38mm

Y-axis moving rated load: 30kgs

Clutch suction force (Max.): 1.5kgs

Resolution of Encoder: less than 0.07mm

Clamping capacity of the clamp: >=0.7kgs

Weight:5kgs

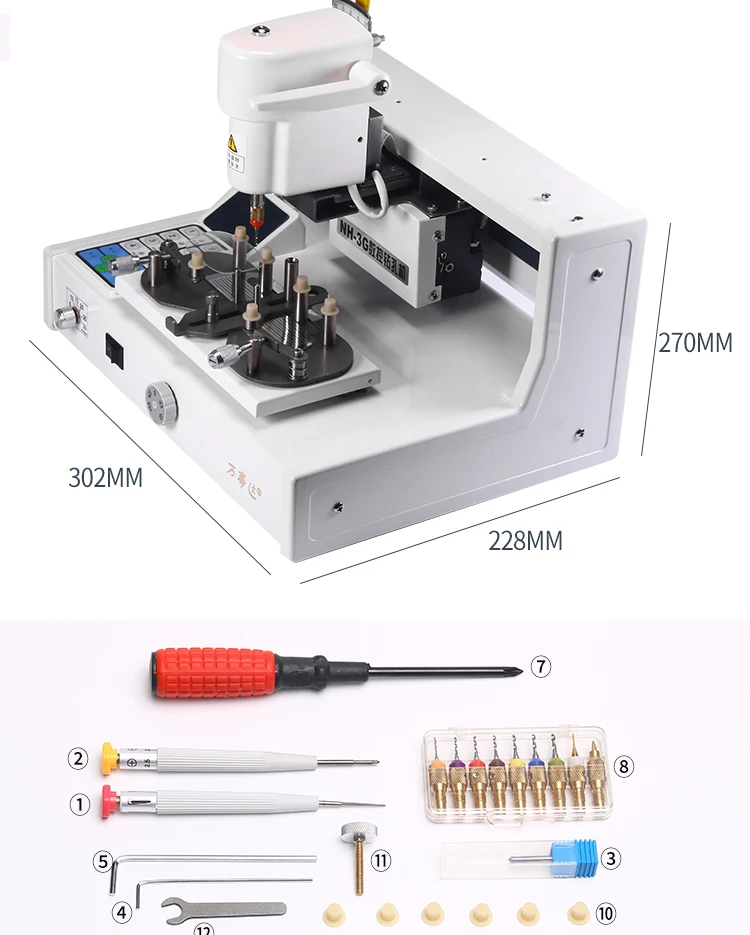

Volume:302(L)x228(w)x270(H)cm
