Features:

HD touch LCD display

High -end process precision assembly

Modern and simple appearance

Fast and automatic recognition of progressive multifocal lenses

Green LED light source does not need ABBE coefficient compensation

Optimized and upgraded Hartman multi-point measurement technology

Specification

Measuring range

Ball mirror :0 to ± 35 D (reading accuracy 0.01D /0.06D/0.12D /0.25D)

Measuring range                      Accuracy

＜0D ≥- 5D    ＞0D≤+5D            ±0.06

＜-5D≥-10D   ＞+D≤+10D          ±0.09

＜-10D≥-15D ＞+10D≤+15D      ±0.12

＜-15D≥-20D ＞+15D≤+20D     ±0.18

＜-20D≥-35D ＞+20D≤+35D     ±0.25

Cylinder :0 to ± 10D （reading accuracy 0.01D/0.06D /0.12D /0.25D)

Cylindrical axis position :0°to 180 ° （reading accuracy 1°）

ADD :0 to 10D (reading accuracy 0.01D/0.06D /0.12D / 0.25D)

Prism :0to 10 △（ 0.01△）

Measure range    Accuracy

＞0△ ≤5D                0.1△

＞5△ ≤15D             0.2△

Cylinder mode :+ +/- -

Prism representation mode : X-Y :Cartesian coordinates H : I , O V:U ,D

P-B :Polar coordinates mm : X and Y are both expressed in mm

Reading resolution : 0.01D /0.06D /0.12D /0.25

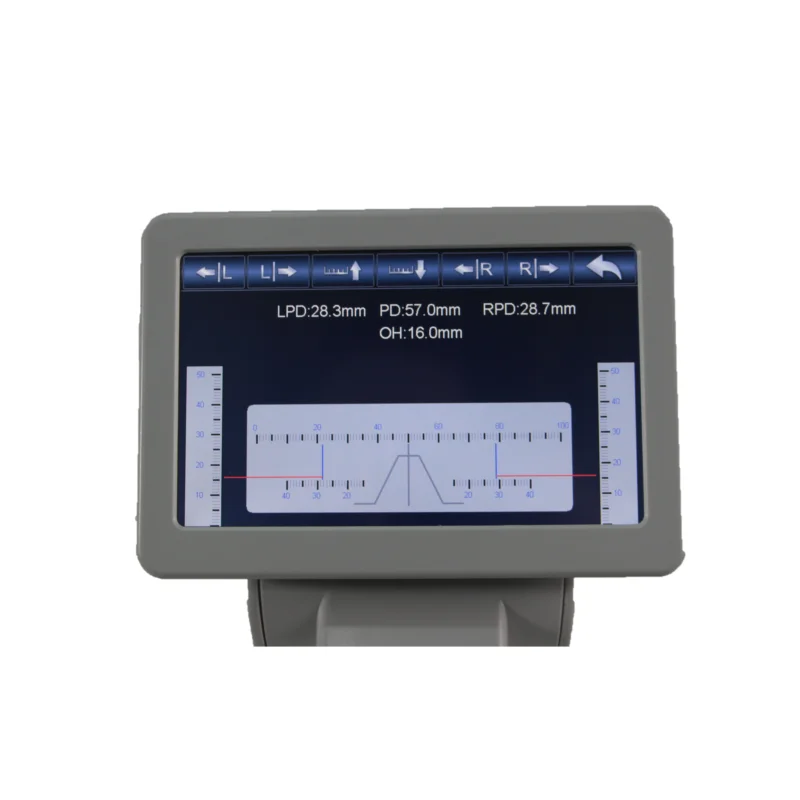

Interpupillary distance measurement function

Can measure lens with refractive index polarization high dispersion solar film ,multi-focus scratch ,etc single light double light triple light progressive multifocal light etc .

UV /bule light transmittance measurement function

Contact lens measurement function

Measurable lens :＞10% the transmittance of lens when the power exceeds 10D is required ＞ 20%

Contact 10D is required ＞20%

Contact lenses :0 to ± 25D BC 6.00 to 9:00

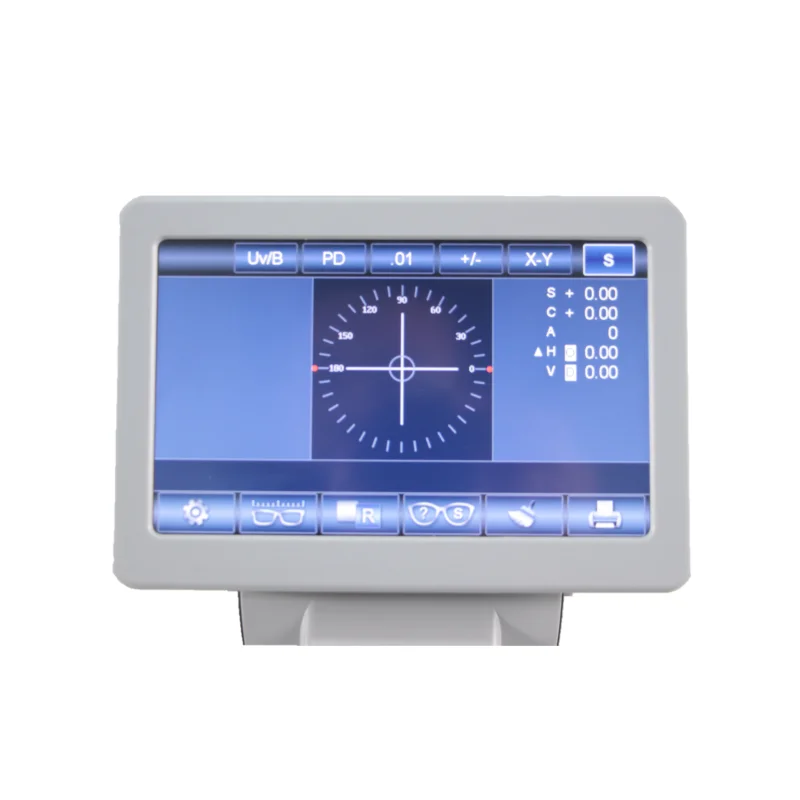

Display :7.0-inch HD touch LCD monitor

Menu:user-friendly design easy to operate

Applicable lens diameter :20mm -100mm

Power supply :AC100 (±10%）-240（ ±10%）V50、60HZ 40VA

Maximum power :40 W

Weight :6.8kgs

Instrument specifications :550mm (L)X 350 (W)X350mm(H)

Environmental conditions :

a. Temperature :5-40C (use temperature )-20-60℃（storage /transport temperature )

b. Humidity : 30-85%(non-condensing )(use humidity ) 10-95%(storage /transport      humidity )

c. Atmospheric pressure :700 - 1060hpa

d. Altitude :up to 2000m

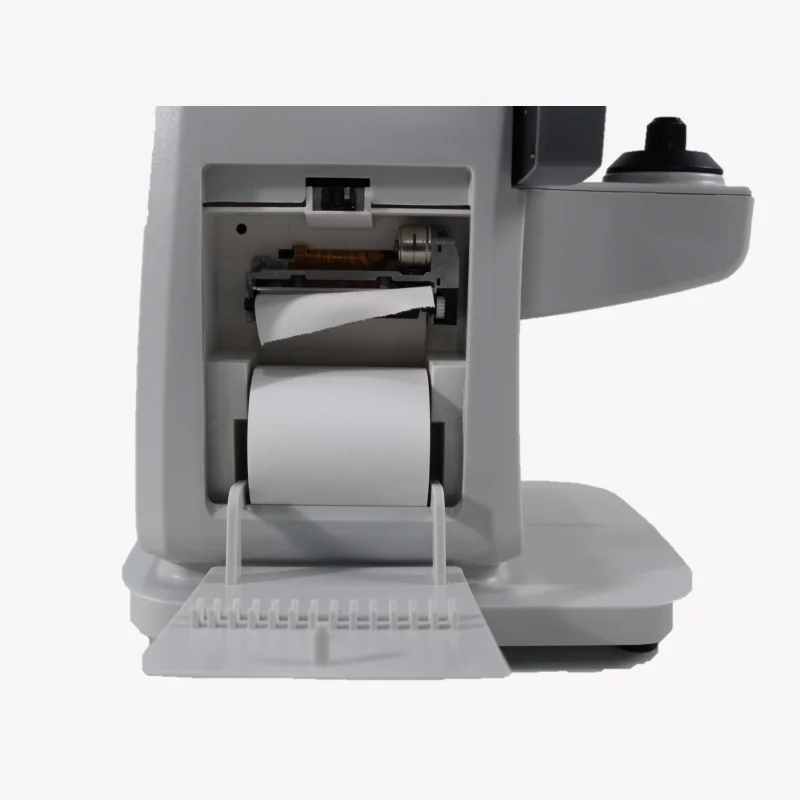

e. Other :no harmful dust and smoke (Optional accessories :printer (built -in thermal printer  paper width :57mm)
