YZ-20T4 Top Quality Ophthalmic Operating Microscope with 5 Steps

SKU. 195581

$ 6,000

Stock:: 4 in Stock

Quantity:: - +
piece(s)

Shipping:: $ 31.32

Can't deliver

To Be Negotiated

to United States Change

Estimated delivery time : 0-27 working days.

Total Price:: $ 6,000 $ 0.00 save $ 0.00

Shipping calculated at checkout.

Buy Now

Add to Cart

Shipping & Returns
Get a Quote

Description
Specification
Q & A
Customer Reviews
Shipping Policy
Warranty
Wholesale Inquiry

Features:

1. Assistant microscope can be rotated to opponent microscope.

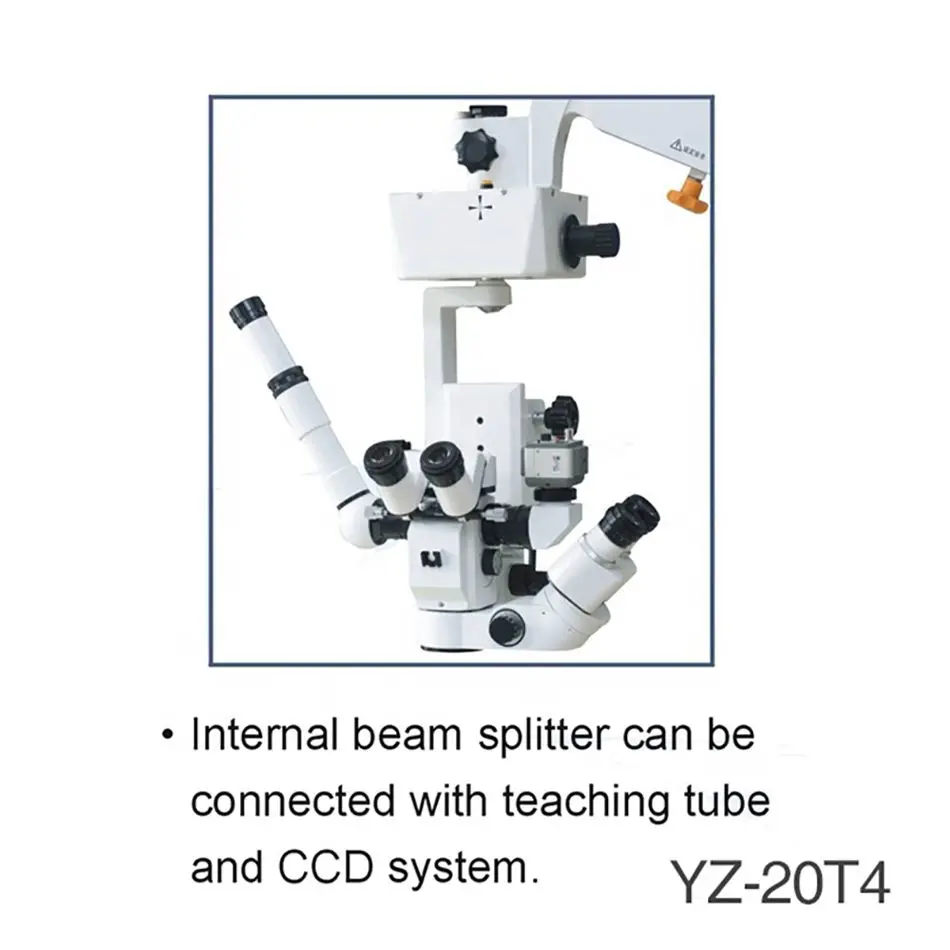

2. Internal beam splitter can be connected with teaching tube and CCD system.

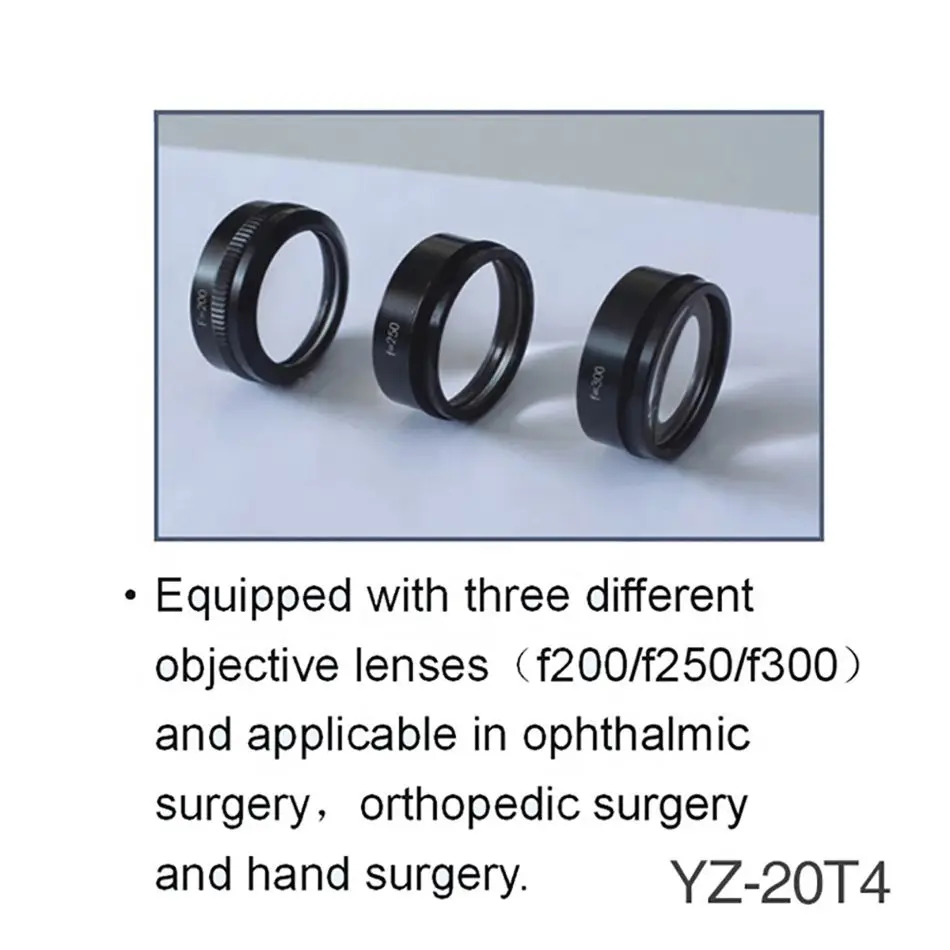

3. Equipped with three different objective lenses (f200/f250/f300) and applicable in ophthalmic surgery, orthopedic surgery and hand surgery.
4. Oblique illumination can also be used as slit illumination and slit width is adjustable.

Specification
Model	YZ-20T4 Ophthalmic Operation Microscope
Eye piece Magnification	12.5x/18B
Working Distance	f200: 190mm; f250: 240mm; f300:290mm
Magnification for Main Microscope	f200: 4x, 6x, 10x,16x, 25x; f250: 3.2x, 5x, 8x, 12.8x, 20x; f300: 2.7x, 4.2x, 6.7x,11x, 17x
Magnification for Assistant Microscope	f200: 6x, 10x,16x; f250: 5x, 8x, 12.8x; f300: 4.2x, 6.7x,11x
Adjustable Diopter	±7D
Adjustable Range of Pupil Distance	50mm ~ 75mm
Focus for Assistant Microscope	≥ 30mm
Maximal Resolution	112LP/m
Illumination Source	12V/100W, Medical cold-reflection Halogen Lamp
Illumination Type	6°+0 °Coaxial illumination and, 25° Oblique Illumination (it can be used as slit illumination) Slit Width is adjustable and the angle is 360°rotation.
Coaxial Illumination	≥ 50000lx
Oblique Illumination	≥ 45000 lx
Reaching Radius of Arm	1040mm
Adjustable Vertical Range	850mm ~ 1350mm
Fine Focus Speed and Range	≤ 2mm/s, 50mm
Speed for X/Y and Range	≤ 2mm/s, 50mmx50mm
Input Voltage	AC 220V ± 10% /50HZ ±1HZ, AC 110V±10%/60HZ ±1Hz
Power	330VA
Fuse	AC 250V T4.0A(51S-040H), AC 110V T 8.0 A (51S-080L)
Electrical Safety Standard	Executive to GB 9706.1-2007, Class I
Packing Volume	0.727cbm, 5 cartons
Total Gross Weight	210kg
