Automatic Perimeter Projection Perimeter LED Kinetic Perimeter Visual Field Analyzer Ophthalmic Eye Exam Equipment

SKU. 196670

$ 8,800

Stock:: 3 in Stock

Quantity:: - +
piece(s)

Shipping:: $ 1,000.03

Can't deliver

To Be Negotiated

to United States Change

Estimated delivery time : 0-27 working days.

Total Price:: $ 8,800 $ 0.00 save $ 0.00

Shipping calculated at checkout.

Buy Now

Add to Cart

Shipping & Returns
Get a Quote

Description
Specification
Q & A
Customer Reviews
Shipping Policy
Warranty
Wholesale Inquiry

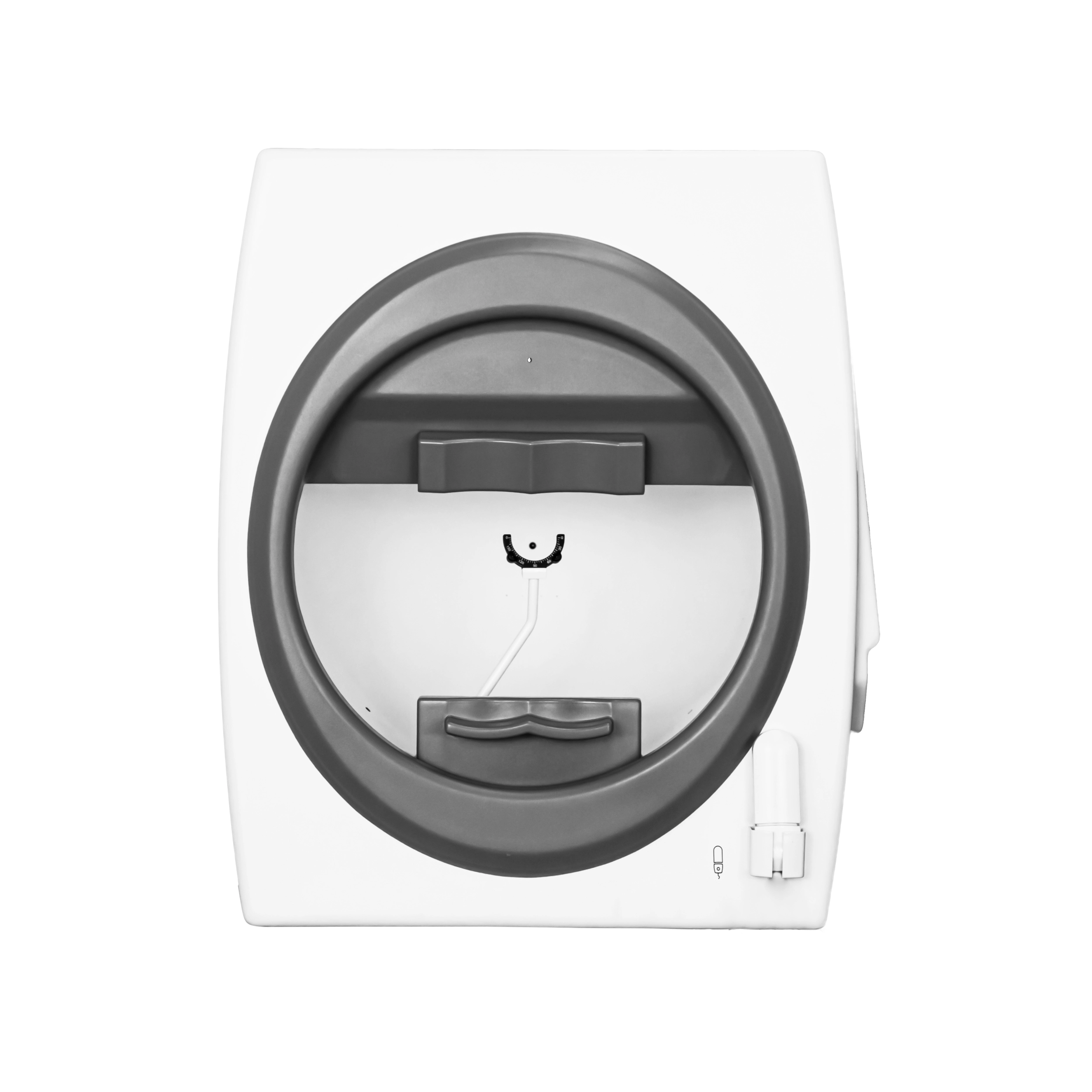

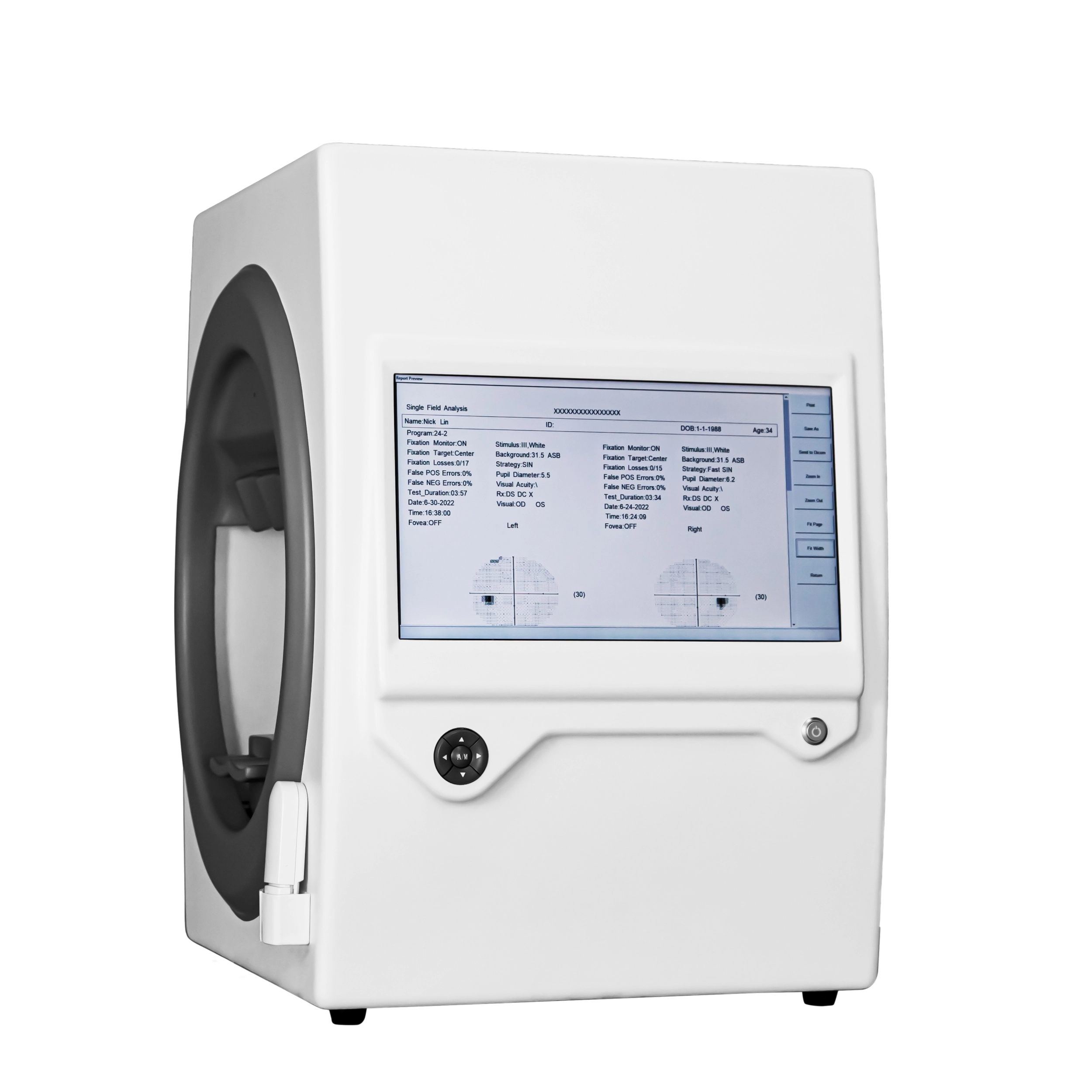

SVF-9000 Auto Perimeter Visual Field Analyzer.

The SVF-9000 Pro/Basic Static & Kinetic Perimeter, is technologically advance,premium quality with premium specifications visual field analyzer, which is here to set new standards for perimetry, world-wide.

Product Name	Projection Perimeter Visual Field Analyzer
Model No.	SVF-9000
Stimulus Size and Color	Goldmann I, II, III, IV & V,Stimulus Color White,Blue,Red

Main Features:

The device is fully compliant to the Goldman Standards, offering a White-on-White test with a premium LED light source that prolongs the life of the illumination.

1.Professional and Precise Perimeter with Pure Optical Controlling System
Stimulus brightness controlled through changing progressive lens position.High-performance mechanical projection system, can project stimulus points with high precision, there are no restrictions on projection points.
2.Standard Goldman Perimeter with Complete Functions

Full compliance with the Goldman standards.Classical test with white stimulus on white background light test.Professional test with blue stimulus on yellow background light test(SWAP).Kinetic and Static Test All-In-One. Cursor size are changeable among Goldmann I, II, III, IV & V.

3.Auto Eye Recognition and Pupil Diameter Measurement
System recognize OD/OS automatically and alarm to indicate operator,which is helpful to avoid mistake during test.Auto pupil diameter measured during test for correcting visual error.

Specification:

1.Technical Data

DB Value Range: 0 ~ 51 dB

Stimulus Intensity Range: 0.08 asb ~ 10,000 asb

Stimulus Size: Goldmann Ⅰ,Ⅱ,Ⅲ,Ⅳ &Ⅴ

Stimulus Color: White,Blue,Red
Duration Time: 200ms/Adaptive

Max Measurement Range: 90°

Test Distance: 30 cm

Test Mode: Static & Kinetic

Stimulus Quantity: 456 Points
Stimulus Plane: Aspherical Surface

Background Illumination: White 31.5 asb (10cd/m2),Yellow (315 asb)

2.Advanced Software Operations

Advanced Options: Customize Test Program, Auto Eye Recognition, Blindzone Range Test
Stimulus Source: Halogen

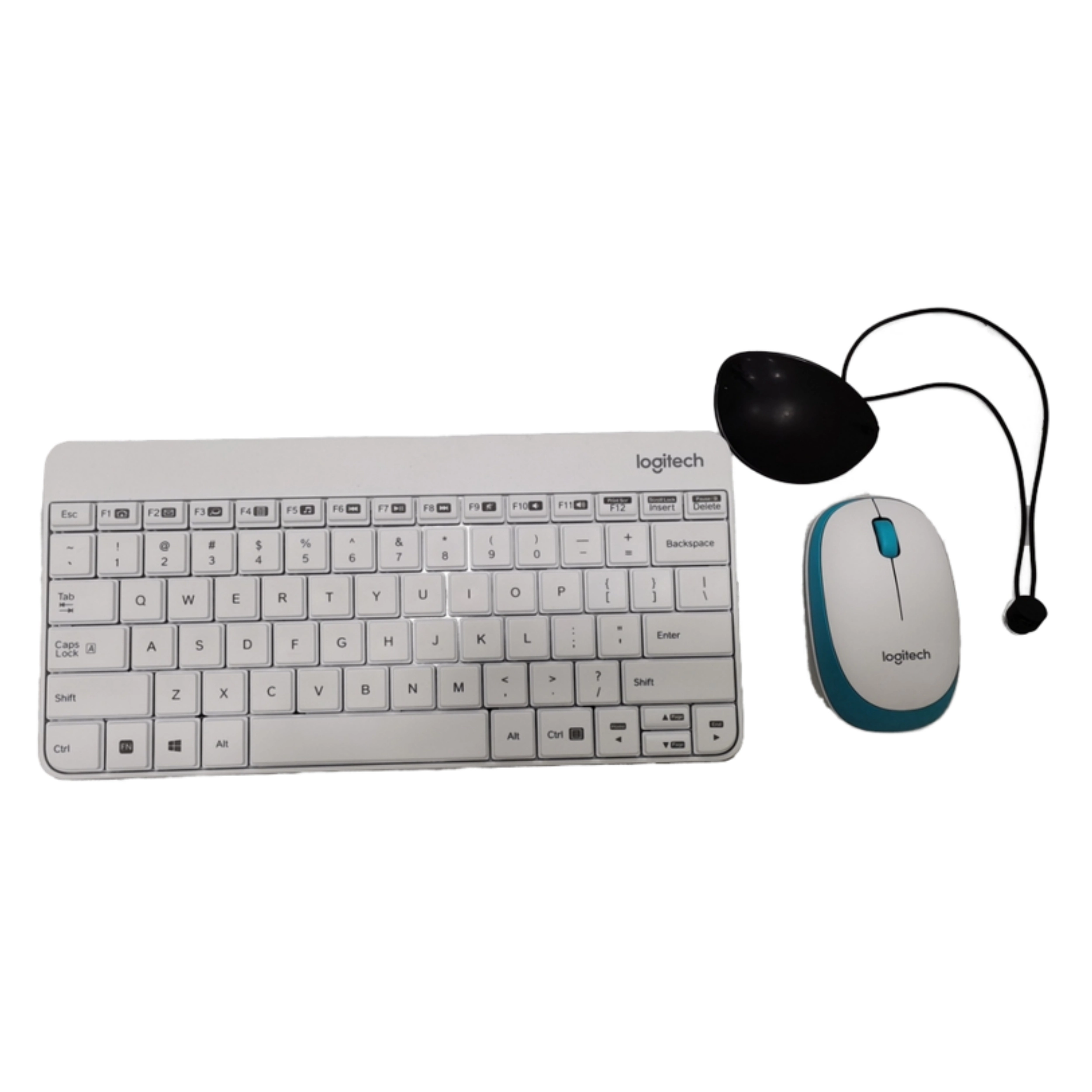

Chinrest Control: Touchscreen, Keyboard and Mouse Control, Button Control
Head Movement: Chinrest and Headrest move simultaneously

3.Computer Specification

CPU: 1.6 GHz
RAM: 4GB
Hard Disk: 120GB
Operational System: Windows 10
Display: 14” Capacitive Touch screen
Network: Wi-Fi, Ethernet

4.Data Export: Methods: DICOM 3.0, USB

5.Electrical and Environmental:Voltage/Frequency: AC 100V – 240V / 50 ~ 60 Hz

6.Test Report:

Classic Test report: Test report in Classic format, can be easily read and understood by doctors worldwide.
